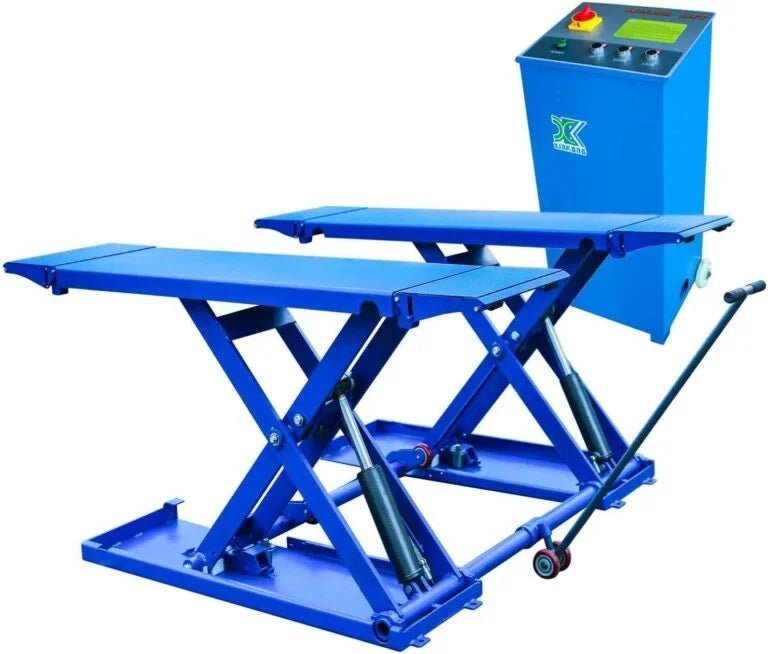

6600 lb. Automotive Mid Rise Scissor Automotive Auto Car Lift 220V

About this item: Easy loading drive-on style scissors lift. Double scissors design with four synchronized cylinders for a low profile and a full 70” lifting height. with Max Electricity 220V:30A. bar Inject 15 litters of wearable hydraulic oil into the oil tank. Continuous Working Pressure 210. Air .. When connecting the motor refer to the enclosed diagrams, and the motor direction is clockwise. Main technical parameter: Motor Type: Y90L Max. Power: 2.2kw Max. Voltage: AC 400 or 220V ±5% Max Electricity: 400V:5A  /  220V:10A Max Frequency : 50/60Hz Poles : 4 Speed .1450 r.p.m./min. Building Shape: B14 Insulation Class: F Pump Type: P4.3 Model: Gear Pump Max. Flux: 4.3cc/r Joint Type: Joint Overfull Valve Capacity: 3500kg Max. Lifting Height: 1024 mm Min. Height: 110 mm Overall Length: 2026 mm Overall Width : 1860 mm Lifting Time: ≤35s Lowering Time:  ≤25s Power Supply:  AC  400V or 220V±5% 50/60Hz Power : 2.2kw Hydraulic Oil  12L wearable hydraulic oil Working Temperature  5-40℃ Working Humidity:  30-95% Noise Level: < 76db Installation Altitude Height: above sea level≤1000M Storage Temperature:  -25℃~55℃ Continuous Working Pressure: 210 bar Intermittent Working Pressure: 150~300 bar Inject: 15 litters of wearable hydraulic oil into the oil tank Specifications: Condition:New Capacity: 6600 lb Type: Scissor Lift Features: Hydraulic Vehicle Type: Motorcycle, Passenger Vehicle Brand: XKUSA UPC:615867029370
